Heavy Duty Manual Stacker

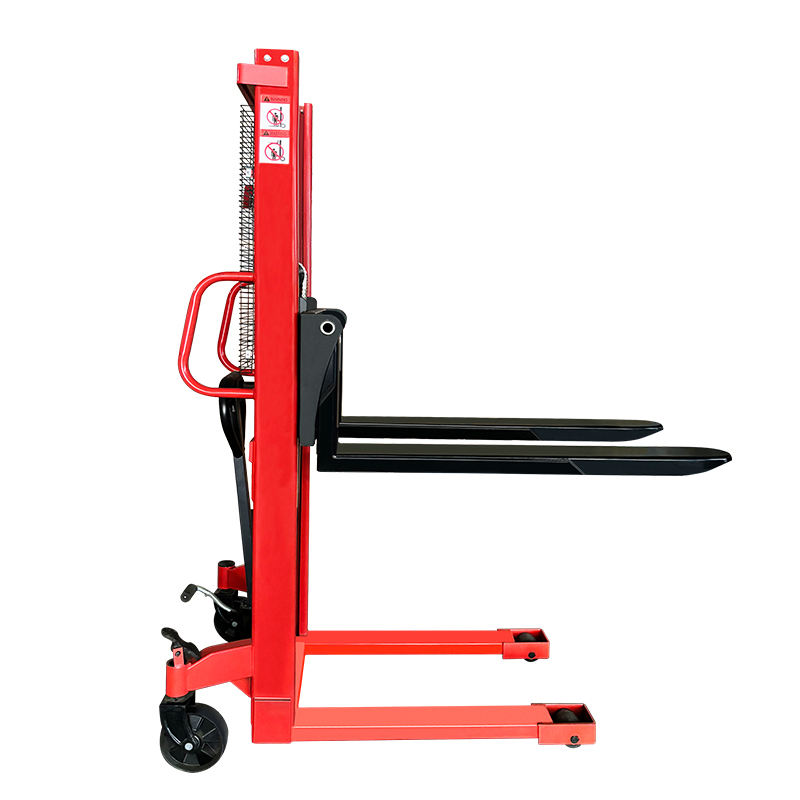

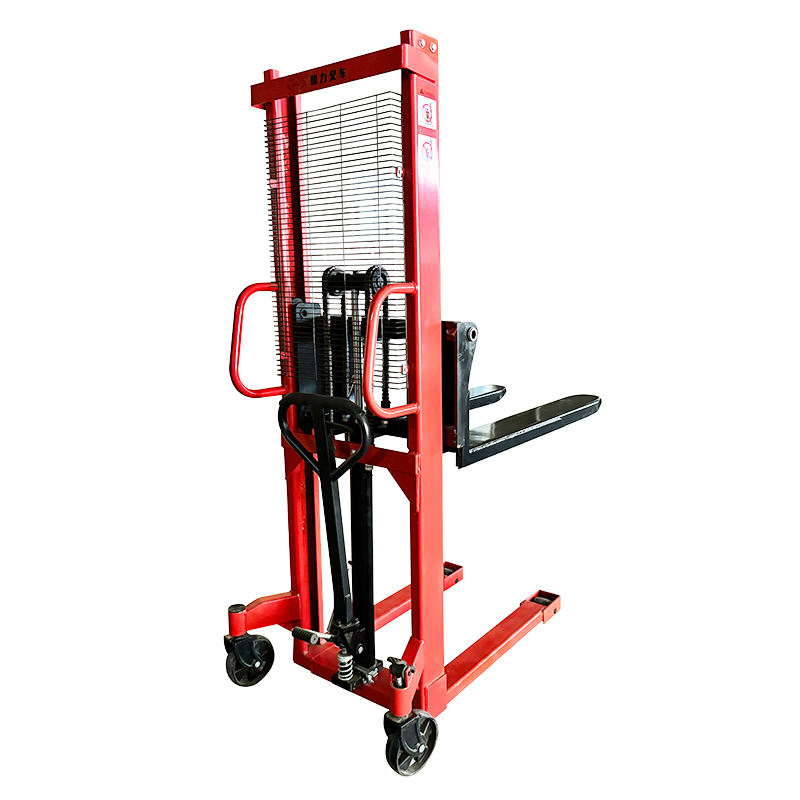

Heavy Duty Manual Stacker-SFH2016
Stable chassis with 2 frame rollers and 2 steering rollers.
Sensitive lowering through sinking valve.
Overload protection via pressure valve.
Quick change attachment available.
Home > Product > Stacker > Manual Stacker >Heavy Duty Manu...
Product Specificaton
| Stacker Specifications | |
| Item No. | SFH2016 |
| Loading (kgs) | 2000 |
| Fork Length (mm) | 830 |
| Fork Width (mm) | 120 |
| Fork Outside Width (mm) | 280-750 |
| Min.Fork Height (mm) | 90 |
| Max.Lift Height (mm) | 1600 |
| Overall Height (mm) | 2050 |
| Rear Wheel Size (mm) | 150 |
| Front Wheel Size (mm) | 75 |
| Net Weight (kgs) | 160 |
Core Advantages
- 01
- 02Quality Advantage
Production strictly comply with ISO9001:2015 quality system,
BSI quality management system
Metal processing including spraying is completed by our own factory to ensure quality
- 03Technical Advantage
A professional R & D design team to make customization
Products have obtained utility patents and appearance patents, and passed GS, CE safety certifications
The factory has passed ISO9001,ISO14001,SEDEX and other system certifications
- 04Service Advantage
15 days for sample making and 30 days for bulk delivery
Products are packaged in strict accordance with export requirements.
One year warranty period
