Stable Electric Lift Table

I. Product Features

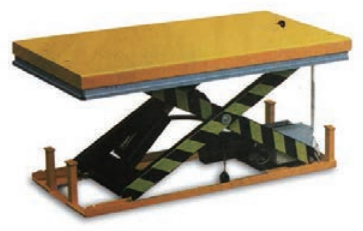

1. Structural Form: Adopts a scissor-type mechanical structure, driven by hydraulic cylinders to achieve platform lifting. The structure is compact and the force distribution is reasonable.

2. Fixed Installation: The base is fixed to the ground and cannot be moved, making it suitable for long-term use at fixed workstations (e.g., production lines, warehouse loading/unloading points).

3. Load Capacity: Can be designed with different tonnages according to requirements, ranging from several hundred kilograms to several tons, to meet most material handling needs.

4. Smooth Lifting: The scissor structure ensures the platform operates smoothly during lifting and lowering, with minimal sway, resulting in high safety.

5. Control Methods: Commonly uses electro-hydraulic control, operable via buttons or foot switches. Some models support custom functions such as explosion-proofing and variable frequency speed regulation.

6. Tabletop Design: The tabletop can be customized in size according to needs, and can also be equipped with rollers, raceways, or rotating devices to adapt to different operation scenarios.

I. Advantages

1. Strong Stability: Fixed installation combined with a scissor structure provides excellent overall rigidity, preventing tilting under heavy loads, making it suitable for precision assembly or heavy material handling.

2. High Safety: Equipped with safety devices such as anti-fall protection, overload protection, and emergency stop functions. Some models feature mechanical locking structures to prevent accidental descent.

3. Low Maintenance Costs: The structure is relatively simple, and the hydraulic system is mature and reliable. Routine maintenance mainly involves checking hydraulic oil and seals.

4. High Space Utilization: The height after lowering is very low, allowing it to be flush with or slightly above the ground, facilitating direct access by forklifts and hand trucks, thus saving workspace.

5. Easy Operation: Electrically controlled, it can be operated by a single person, enabling precise adjustment of the platform height to improve work efficiency.

II. Disadvantages

1. Immobility: Once installed and fixed, the work position cannot be flexibly adjusted. If multi-station use is required, additional equipment must be purchased.

2. High Ground Requirements: The installation foundation must be flat and solid; otherwise, it will affect the lifting stability and service life of the equipment, leading to higher civil engineering costs.
